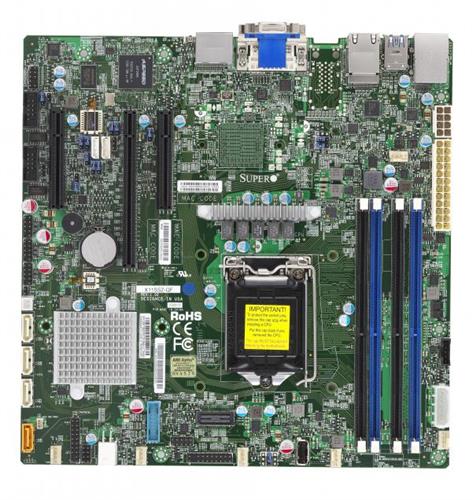

X11SSZ-F-O

US$ 500.48
Agregar al Carrito
MBD-X11SSZ-F-O
Favoritos Consultar

Product SKUs

MBD-X11SSZ-F
  • X11SSZ-F

Physical Stats

Form Factor
  • Micro-ATX
Dimensions
  • 9.6" x 9.6" (24.38cm x 24.38cm)

Processor/Cache

CPU
  • Intel® 6th Generation Core? i3 series
  • Intel® 6th Generation Core? i5 series
  • Intel® 6th Generation Core? i7 series
  • Intel® 7th Generation Core? i3 series
  • Intel® 7th Generation Core? i5 series
  • Intel® 7th Generation Core? i7 series
  • Intel® Celeron®
  • Intel® Pentium®
  • Intel® Xeon® processor E3-1200 v5 series
  • Intel® Xeon® Processor E3-1200 v6 series
  • Socket H4 (LGA 1151) supported; CPU TDP support Up to 91W
Note
  • BIOS version 2.0 or above is required to support 7th Generation Intel® Core? Processors and Intel® Xeon® Processor E3-1200 v6 series

System Memory

Memory Capacity
  • Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
Memory Type
  • 2400/2133/1866MHz ECC DDR4 SDRAM 72/64-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes
  • 4GB, 8GB, 16GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
  • Intel® C236
SATA
  • Intel® C236 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Intel RSTe
Network Controllers
  • Single Intel® PHY I219LM LAN controller
    Single Intel® Ethernet Controller I210-AT
Audio
  • ALC 888S HD Audio
Graphics
  • Intel® HD Graphics, Aspeed AST2400 BMC
  • 3 Independent Displays, VGA is from BMC A CPU with processor graphics is required for Intel HD Graphics (DVI/DP). Example: E3-1275 v5

Input / Output

USB
  • 9 USB 2.0 ports (2 rear, 6 via header(s), 1 Type A)
  • 4 USB 3.0 ports (2 rear, 2 via header(s))
  •
Video Output
  • 2 DP (DisplayPort) port(s), 1 DVI - I port(s), 1 VGA port(s)
Serial Port / Header
  • 2 COM Ports (2 header(s))
TPM
  • 1 TPM 2.0 Header
Expansion Slots

PCI-E
  • 1 PCI-E 3.0 x16 (in x16 slot)
  • 2 PCI-E 3.0 x4 (in x8 slot)
  •

System BIOS

BIOS Type
  • AMI UEFI
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • Hardware BIOS Virus protection
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1

Management

Software
  • AMT
  • IPMI2.0
  • KVM with dedicated LAN
  • NMI
  • SuperDoctor® 5
  • vPro
  • Watchdog
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring

Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 1.2V (VDIMM), 6 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • 6 fans with tachometer status monitoring
  • Fan speed control
  • Overheat LED indication
  • Pulse Width Modulated (PWM) fan connectors
  • PWM fan speed control
  • System level control
  • Thermal control tachometer fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
  • UID/Remote UID
Other Features
  • 8-pin 12v DC power connector
  • ACPI power management
  • ATX Power connector
  • Chassis intrusion header
  • Control of power-on for recovery from AC power loss
  • CPU thermal trip support for processor protection
  • Intel Smart Response Technology
  • RoHS
  • System level control
  • UID
  • WOL

Operating Environment

Operating Temperature Range
  • 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range
  • -20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range
  • 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range
  • 10% ~ 95% (non-condensing)
Socalo de CPU : 1151
Tipo de Memoria : DDR4 UDIMM
Cantidad de Sockets : 1
IPMI : Si
LAN : Dual LAN with 1Gbe LAN
Marca : SUPERMICRO
Memoria RAM maxima : 64GB
PCIEx16 : 1
PCIEx8 : 2
