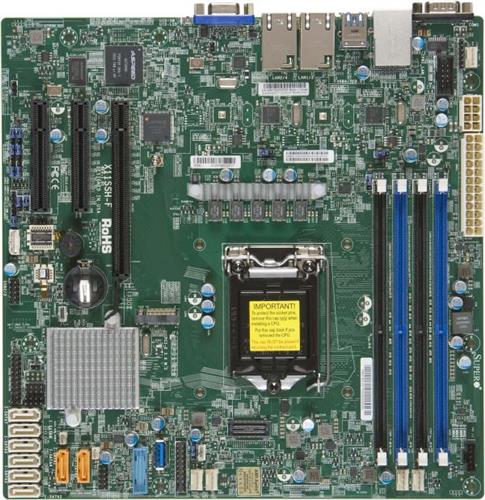

X11SSH-F-O

US$ 931.32
Agregar al Carrito
MBD-X11SSH-F-O
Favoritos Consultar

Product SKUs

MBD-X11SSH-F
  • X11SSH-F

Physical Stats

Form Factor
  • Micro-ATX
Dimensions
  • 9.6" x 9.6" (24.38cm x 24.38cm)

Processor/Cache

CPU
  • Intel® 7th/6th Generation Core i3 series, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® processor E3-1200 v6/v5.
  • Single Socket H4 (LGA 1151) supported, CPU TDP support 80W
Note
  • BIOS version 2.0 or above is required to support 7th Generation Intel® Core? i3 Processors and Intel® Xeon® Processor E3-1200 v6 series

System Memory

Memory Capacity
  • 64GB Unbuffered ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes
  • 4GB, 8GB, 16GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors

On-Board Devices

Chipset
  • Intel® C236
SATA
  • Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2400 BMC
Network Controllers
  • Dual LAN with Intel® Ethernet Controller I210-AT
Graphics
  • Aspeed AST2400 BMC

Input / Output

USB
  • 6 USB 2.0 ports (2 rear + 4 headers)
  • 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output
  • 1 VGA port
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)
TPM
  • TPM Header
Expansion Slots

PCI-E
  • 1 PCI-E 3.0 x8 (in x16 slot),
  • 1 PCI-E 3.0 x8,
  • 1 PCI-E 3.0 x4 (in x8 slot)
M.2
  • M.2 Interface: PCI-E 3.0 x2
  • Form Factor: 2280
  • Key: M-Key
  • Double Height Connector

System BIOS

BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • DMI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.7.1
  • UEFI 2.3.1

Management

Software
  • Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring

Voltage
  • +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN
  • 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature
  • Monitoring for CPU and chassis environment, CPU thermal trip support, PECI, Thermal Monitor 2 (TM2) support
LED
  • CPU / System Overheat LED, UID/Remote UID
Other Features
  • Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, VHD, WOL

Operating Environment

Operating Temperature Range
  • 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Socalo de CPU : 1151
Tipo de Memoria : DDR4 UDIMM
Cantidad de Sockets : 1
IPMI : Si
LAN : Dual LAN with 1Gbe LAN
Marca : SUPERMICRO
Memoria RAM maxima : 64GB
PCIEx16 : 1
PCIEx8 : 2
SuperDOM : 2
