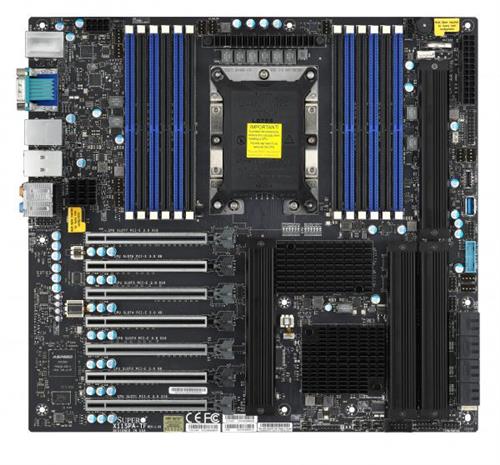

X11SPA-TF

US$ 2171.64
Agregar al Carrito
MBD-X11SPA-TF-O
Favoritos Consultar
Product SKUs
MBD-X11SPA-TF
  • X11SPA-TF

Physical Stats
Form Factor
  • E-ATX
Dimensions
  • 12" x 13" (30.48cm x 33.02cm)

Processor/Cache
CPU
  • Intel® Xeon® Scalable Processors (Cascade Lake/Skylake).
  • Single Socket P (LGA 3647) supported, CPU TDP support 205W
Cores / Cache
  • Up to 28 cores

System Memory
Memory Capacity
  • Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz, in 12 DIMM slots
Memory Type
  • N/A
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage
  • 1.2V

On-Board Devices
Chipset
  • Intel® C621
SATA
  • Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Network Controllers
  • Single LAN with Intel® Ethernet Controller I210-AT
    Single LAN with Aquantia® AQC107 10G Ethernet Controller
    Single LAN with Realtek RTL8211E PHY (dedicated IPMI)
Graphics
  • Aspeed AST2500 BMC
  • VGA connector is dedicated for IPMI.

Input / Output
LAN
  • 1 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 ports (2 headers, Type A))
  • 6 USB 3.1 Gen1 ports (4 Rears Type A, 2 headers)
  • 4 USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C, 1 Type A + 1 Type C)
Video Output
  • 1 VGA port,
  • VGA connector is dedicated for IPMI.
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 4 PCI-E 3.0 x16,
  • 3 PCI-E 3.0 x8 (in x16 slot),
  • PCI-Ex16 Slot#1 shares with M.2, Slot#2 shares with Slot#3(NA/16,8/8), Slot#4 shares with Slot#5(NA/16,8/8), Slot#6 shares with Slot#7(NA/16,8/8)
  •
M.2
  • M.2 Interface: 4 PCI-E 3.0 x4, RAID 0 & 1
  • Form Factor: 2242/2260/2280/22110
  • Key: M-Key
  •
  • M.2 shares PCI-E lanes with PCI-Ex16 slot#1, VROC key is required for Raid. PCI-Ex16 Slot#1 shares with M.2, Slot#2 shares with Slot#3(NA/16,8/8), Slot#4 shares with Slot#5(NA/16,8/8), Slot#6 shares with Slot#7(NA/16,8/8)

System BIOS
BIOS Type
  • 256Mb SPI Flash with AMI BIOS
BIOS Features
  • ACPI 3.0 / 4.0
  • SMBIOS 2.7
  • PCI FW 3.0
  • RTC (Real Time Clock) Wakeup

Management
Software
  • IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SPM, SUM, SuperDoctor® 5, Watchdog
System Mangement Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • SuperDoctor 5
Power Configurations
  • ACPI Power Management
  • Main Switch Override Mechanism
  • Power-on mode for AC power recovery
  • CPU thermal trip support for processor protection

PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
FAN
  • 10x 4-pin fan headers (up to 10 fans), 10x fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Overheat LED indication, PWM fan speed control, Status monitoring for speed control

  • 2 CPU Fan + 1 Water Cooler Radiator power connector + 8 System Fans.
Temperature
  • CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
LED
  • CPU / System Overheat LED, Suspend static indicator LED
Other Features
  • Chassis intrusion header, CPU thermal trip support for processor protection, Dual Cooling Zones, Intel Smart Response Technology, RoHS, UID, WOL

Operating Environment
Operating Temperature Range
  • 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 10% ~ 95% (non-condensing)
Socalo de CPU : 3647
Tipo de Memoria : DDR4 RDIMM
Cantidad de Sockets : 1
HW RAID : RAID 0, 1, 5, 6, 10, 50, 60
IPMI : Si
LAN : Dual LAN with 10Gbase-T
Marca : SUPERMICRO
Memoria RAM maxima : 3TB
PCIEx16 : 4
PCIEx8 : 3
