Product SKUs

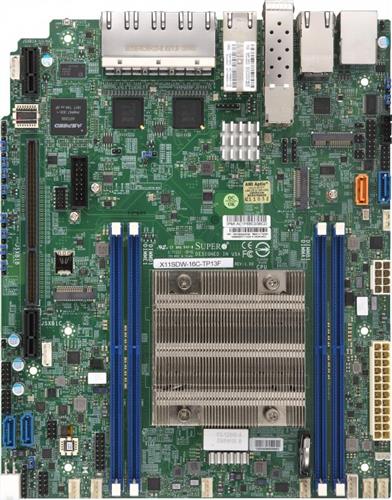

  • X11SDW-14C-TP13F
Physical Stats
Form Factor
  • Proprietary WIO
  • 8" x 10" (20.32cm x 25.4cm)
  • Intel® Xeon® Processor D-2173IT.
  • Single Socket FCBGA-2518 supported
Cores / Cache
  • 14 cores, 28 threads / 19MB cache
System Memory
Memory Capacity
  • Up to 256GB Registered ECC RDIMM, DDR4-2133MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2133MHz, in 4 DIMM slots
Memory Type
  • 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
  • (Operating speed up to 2133MHz)
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
On-Board Devices
  • System on Chip
  • SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • ASPEED AST2500
  • Support for Intelligent Platform Management Interface v.2.0
Network Controllers
  • Quad LAN with Intel® Ethernet Controller I350-AM4
    Quad LAN with 1GbE with Inte® I350-AM4
    Dual LAN with 10G SFP+ LAN via SoC
    Dual LAN with 10Gbase-T
    Single LAN with 1GbE with Intel® I210
    Total 13 LAN ports
    Single LAN with Realtek RTL8201N PHY (dedicated IPMI)
  • Aspeed AST2500 BMC
  • Header Only
Input / Output
  • 4 SATA3 ports via SoC controller
  • 9 RJ45 Gigabit Ethernet LAN ports
  • 2 RJ45 10GBase-T ports
  • 2 10G SFP+ LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
  • 4 USB 2.0 ports (4 headers, Type A))
  • 2 USB 3.1 Gen1 ports (2 Rears Type A)
Video Output
  • 1 VGA port,
  • Header Only
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)
  • 1 TPM Header & Chip both
Expansion Slots
  • 1 PCI-E 3.0 x32 Left Riser Slot
  • 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
  • 1 M.2 E-Key PCI-E 3.0 x1, 2230
  • 1 M.2 B-Key SATA/PCI-E 3.0 x2/USB 3.0, 2242
System BIOS
  • UEFI 256Mb
BIOS Features
  • ACPI 6.1
  • SMBIOS 3.1
  • UEFI 2.7
  • PCI FW 3.2
  • Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog
System Mangement Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • +12V DC Power Input
  • ACPI Power Management
  • CPU thermal trip support for processor protection
PC Health Monitoring
  • +1.5V, +12V, +3.3V, +5V, +5V standby, 6 -fan status, Chassis intrusion header, HT, Memory, Memory Voltages, Supports system management utility, System level control, System temperature
  • 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for speed control, System level control, Thermal control tachometer fan connectors
  • Monitoring for CPU and chassis environment
  • CPU / System Overheat LED, UID/Remote UID
Other Features
  • 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, RoHS, SDDC, System level control, UID, WOL
Operating Environment
Operating Temperature Range
  • 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Tipo de Memoria : DDR4 RDIMM
IPMI : Si
LAN : Dual LAN with 10Gbase-T   Dual port 10G SFP+
Memoria RAM maxima : 256GB   512GB
PCIEx16 : 1
SuperDOM : 1
