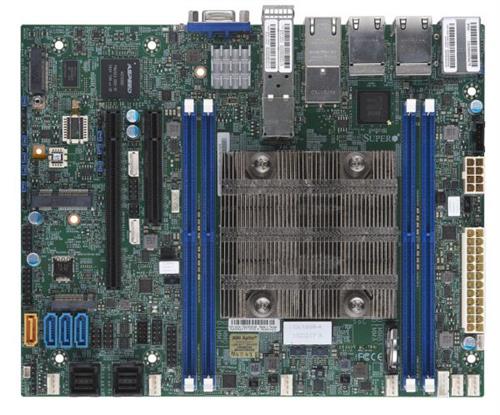

X11SDV-4C-TP8F-O

US$ 2667.78
Agregar al Carrito
MBD-X11SDV-4C-TP8F-O
Favoritos Consultar
Product SKUs
MBD-X11SDV-4C-TP8F
  • X11SDV-4C-TP8F

Physical Stats
Form Factor
  • Flex ATX
Dimensions
  • 9" x 7.25" (22.86cm x 18.42cm)

Processor/Cache
CPU
  • Intel® Xeon® Processor D-2123IT
Cores / Cache
  • 4 cores, 8 threads

System Memory
Memory Capacity
  • Up to 256GB Registered ECC RDIMM, DDR4-2133MHz; Up to 512GB LRDIMM LRDIMM, in 4 DIMM slots
Memory Type
  • 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
  • (Operating speed up to 2133MHz)
DIMM Sizes
  • RDIMM: 16GB, 32GB, 64GB, 128GB
  • LRDIMM: 16GB, 32GB, 64GB, 128GB
Memory Voltage
  • 1.2V

On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Network Controllers
  • Quad LAN with Intel® Ethernet Controller I350-AM4
    Dual LAN with 10G SFP+ LAN via SoC
    Dual LAN with 10Gbase-T
Graphics
  • Aspeed AST2500 BMC

Input / Output
SATA
  • 4 SATA3 ports via SoC controller
LAN
  • 4 RJ45 Gigabit Ethernet LAN ports
  • 2 RJ45 10GBase-T ports
  • 2 10G SFP+ LAN ports
USB
  • 2 USB 2.0 ports (2 headers),
  • 2 USB 3.0 ports (2 rear)
Video Output
  • 1 VGA D-Sub Connector port
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x8,
  • 1 PCI-E 3.0 x16
M.2
  • M.2 Interface: 1 PCI-E 3.0 x4 and 1 SATA/PCI-E 3.0 x2
  • Form Factor: 2242/2280
  • Key: M-Key , B-Key

System BIOS
BIOS Type
  • UEFI 128Mb
BIOS Features
  • ACPI 6.1
  • SMBIOS 3.1
  • UEFI 2.6
  • PCI FW 3.2

Management
Software
  • IPMI2.0, KVM with dedicated LAN, Watchdog
System Mangement Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  •
Power Configurations
  • +12V DC Power Input
  • ACPI Power Management
  • CPU thermal trip support for processor protection

PC Health Monitoring
Voltage
  • +1.5V, +12V, +3.3V, +5V, +5V standby, 5 (4-pin), 5 -fan status, Monitors CPU voltages, System level control
FAN
  • 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control, Overheat LED indication, PWM fan speed control, System level control, Thermal control tachometer fan connectors
Temperature
  • N/A
LED
  • N/A
Other Features
  • 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, CPU thermal trip support for processor protection, Dual Cooling Zones, Intel® QuickAssist Technology , M.2 NGFF connector, RoHS

Operating Environment
Operating Temperature Range
  • 0°C ~ 60°C (32°F ~ 140°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Tipo de Memoria : DDR4 RDIMM
IPMI : Si
LAN : Quad LAN with 1Gbe LAN   Dual LAN with 10Gbase-T   Dual port 10G SFP+
Marca : SUPERMICRO
Memoria RAM maxima : 256GB
PCIEx16 : 1
PCIEx8 : 1
SuperDOM : 1
