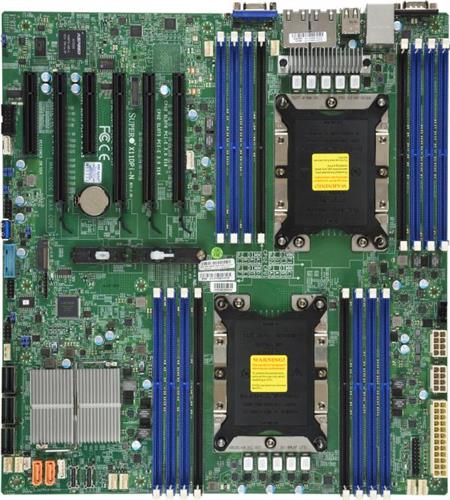

X11DPi-N

US$ 2045.44
Agregar al Carrito
MBD-X11DPI-N-O
Favoritos Consultar
Product SKUs
MBD-X11DPi-N
  • X11DPi-N

Physical Stats
Form Factor
  • E-ATX
Dimensions
  • 12" x 13" (30.48cm x 33.02cm)

Processor/Cache
CPU
  • 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors.
  • Dual Socket P (LGA 3647) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
Cores / Cache
  • Up to 28 cores
Note
  • BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP

System Memory
Memory Capacity
  • Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
  • Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;
  • Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);
  •
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
  • RDIMM: 64GB
  • LRDIMM: 128GB
  • 3DS LRDIMM: 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C621
SATA
  • Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Network Controllers
  • Dual LAN with 1GbE LAN with Inte® X722
Graphics
  • Aspeed AST2500 BMC

Input / Output
SATA
  • 14 SATA3 (6Gbps) port
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 4 USB 2.0 ports (2 rear + 2 headers)
  • 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output
  • 1 VGA port
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 4 PCI-E 3.0 x16,
  • 2 PCI-E 3.0 x8
M.2
  • M.2 Interface: PCI-E 3.0 x4
  • Form Factor: 2260, 2280, 22110
  • Key: M-Key

System BIOS
BIOS Type
  • AMI UEFI

Management
Software
  • Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog

PC Health Monitoring
Voltage
  • +12V, +3.3V, +5V, +5V standby, 3.3V standby, Monitors CPU voltages
FAN
  • 8x 4-pin fan headers (up to 8 fans), PWM fan speed control
Temperature
  • CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
LED
  • CPU / System Overheat LED, UID/Remote UID, BMC/IPMI Heartbeat LED, Power LED
Other Features
  • ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, NCSI header, Node Manager Support, RoHS, SDDC, UID
Socalo de CPU : 3647
Tipo de Memoria : DDR4 RDIMM
Cantidad de Sockets : 2
HW RAID : RAID 0, 1, 10
IPMI : Si
LAN : Dual LAN with 1Gbe LAN
Marca : SUPERMICRO
Memoria RAM maxima : 4TB
PCIEx16 : 4
PCIEx8 : 2
SuperDOM : 2
