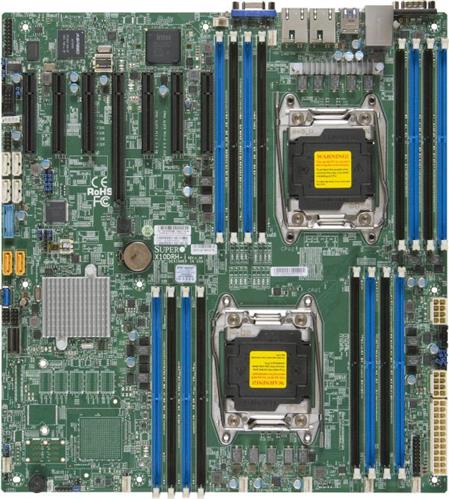

X10DRH-IT

US$ 2180.36
Agregar al Carrito
MBD-X10DRH-IT-O
Favoritos Consultar
Product SKUs
MBD-X10DRH-iT
  • X10DRH-iT

Physical Stats
Form Factor
  • E-ATX
Dimensions
  • 12" x 13" (30.48cm x 33.02cm)

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
  • Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W
Cores / Cache
  • Up to 22 cores † / Up to 55MB† cache
Note
  • † BIOS version 2.0 or above is required
Note
  • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.

System Memory
Memory Capacity
  • Up to 1TB Registered ECC RDIMM, DDR4-2133MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
  • LRDIMM: 32GB, 64GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612
AHCI SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Dual LAN with 10GBase-T with Intel® X540 10GbE Controller
    Single LAN with Virtual Machine Device Queues reduce I/O overhead
    Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
Graphics
  • Aspeed AST2400 BMC

Input / Output
SATA
  • 10 SATA3 (6Gbps) port
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 2.0 ports (2 rear + 2 headers)
  • 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output
  • 1 VGA port
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)
    2 fast UART 16550 serial
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x16,
  • 6 PCI-E 3.0 x8

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1

Management
Software
  • Intel® Node Manager, IPMI2.0, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring
Voltage
  • +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 Phase-switching voltage regulator, Memory Voltages
FAN
  • 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control
Temperature
  • Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI
LED
  • CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
Other Features
  • Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC

Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Socalo de CPU : 2011
Tipo de Memoria : DDR4 RDIMM
Cantidad de Sockets : 2
HW RAID : RAID 0, 1, 10
IPMI : Si
LAN : Dual LAN with 10Gbase-T
Marca : SUPERMICRO
Memoria RAM maxima : 2TB
PCIEx16 : 1
PCIEx8 : 6
SuperDOM : 2
