SuperMicro 8 internal ports, low-profile, 12Gb/s per port- Gen-3, 63HDD - RAID 0,1,10

US$ 848.78
Agregar al Carrito

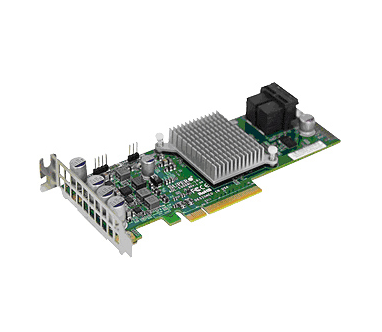

8 Internal Ports SAS RAID Adapter Card - 12Gb/s per port, LSI SAS 3008 Controller, PCI-E 3.0 x8, Low-Profile, RAID 0, 1, 10, Supports up to 63 devices -
Favoritos Consultar
Main Specifications
Dimensions (WxDxH) 837 FPBGA-HP (25mm x 25mm)
Form Factor Low profile
Interface (Bus) Type x8 lane PCI Express® 3.0
Device Type SAS3 controller
Processor
Memory RAM External Memory Interface Support: Flash ROM, NVSRAM
Processor Processor at 1.2 GHz
Storage Controller
RAID Level RAID 0, 1 and 10
Data Transfer Rate Supports 12, 6 and 3 Gb/s SAS and 6 and 3 Gb/s SATA data transfer rates
Channel Quantity 8 internal SAS3 ports w/ 2 mini SAS HDD
Processor Processor at 1.2 GHz
Power
Operating Voltage 19 Watts
Requirements 13W
Environmental Parameters
Storage Temperature Operates up to 55ºC
Software / System Requirements
Management Software Supports MegaRAID Storage Manager Software
OS Supports Windows 2012, 2k8,Vista, RedHat Enterprise and SUSE Linux
Miscellaneous
Key Application Blade Servers, Direct Attached SAS+SATA controller solutions for entry to mid-range servers
  External storage controllers requiring SAS+SATA interface for the host or drive side connect
Features Enlarged venting hole mounting bracket for improved air flow
RAID Data Protection Features SSP, SMP, STP, SATA
Cantidad de puertos Internos : 2 miniSASHD   8 internal SAS3
Marca : SUPERMICRO
TIPO DE RAID : 0/1/10
