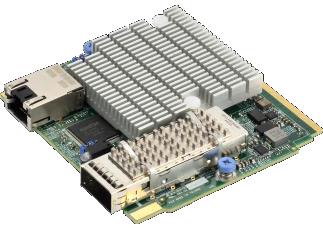

SIOM Single -port InfiniBand EDR controller QSFP28, based on Mellanox ConnectX-4 VPI. And Single-port GbE RJ45, based on Intel i210.,RoHS

US$ 4105.52
Agregar al Carrito
AOC-MHIBE-M1CG-O Super I/O Module (SIOM) Form Factor Mellanox® ConnectX-4 VPI InfiniBand EDR controller, Single QSFP28 Connector Up to 100Gbps InfiniBand or 100Gbps Ethernet Virtual Protocol Interconnect (VPI) VXLAN and NVGRE Intel® i210 GbE controller, Single RJ45 Connector NC-SI for Remote Management Asset Management Features with thermal sensor
Favoritos Consultar
  • General
    • Super I/O Module (SIOM) Form Factor
    • Mellanox® ConnectX-4 VPI EDR controller
      • Single QSFP28 port with speed up to 100Gbps per port
    • Intel® i210 GbE controller
      • Single RJ45 port with speed up to 1Gbps per port
  • Cables Support
    • InfiniBand EDR / 100GbE:
      • QSFP28 100Gbps Copper cable
      • Fiber optic cable (with required optional QSFP28 Optical transceiver)
    • GbE: RJ45 Category 5/5e up to 100m
  • Power Consumption
    • Maximum 19W
  • Operating Conditions
    • Operating temperature: 0°C to 55°C (32°F to 131°F)
    • Storage temperature: -40°C to 70°C (-40°F to 158°F)
    • Storage humidity: 90% non-condensing relative humidity at 35ºC
  • Physical Dimensions
    • Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in)
      (W x D)
Interfaz : SIOM
Marca : SUPERMICRO
Puertos : 1 x RJ45
Velocidad : 1 GBPS
