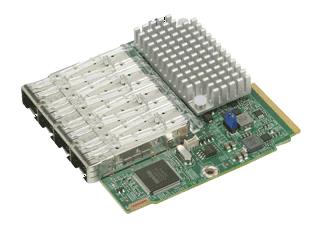

SIOM 4-port 10G SFP+, Intel XL710

US$ 733.46
Agregar al Carrito
AOC-MTG-I4S-O • Quad SFP+ Connectors • Super I/O Module (SIOM) Form Factor • Network Virtualization Offloads including VXLAN and NVGRE • Small Packet Performance • Data Plane Developer Kit for efficient packet processing • Low Power Consumption • Intel® Flow Director • Intelligent Offloads • Unified networking providing a single wire support for LAN and storage • Asset Management Features • NC-SI for Remote Management • RoHS compliant 6/6 • Supports Both Direct Attach Copper and Fiber Cables
Favoritos Consultar

• General
   - Intel® XL710 controller
   - Super I/O Module (SIOM) Form Factor
   - Quad SFP+ connectors with speed up to 10Gbps per port
   - Load balancing on multiple CPUs
   - Intel® PROSet Utility for Windows Device Manager
   - Time Sync (IEEE 1588)
   - Energy Efficient Ethernet (EEE)

• I/O Features
   - Intel® Flow Director
   - MSI-X support
   - Multiple Queues: 1,536 TX and RX queues per port
   - Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6)
     capabilities
   - Jumbo Frame (9.5KB)

• Virtualization Features
   - Next-Generation VMDq with up to 256 VMDq VMs supported
   - PCI-SIG SR-IOV with up to 128 virtual ports
   - Virtual Machine Load Balancing (VMLB)
   - Advanced Packet Filtering
   - VLAN support for up to 4096 VLAN tags
   - VXLAN and NVGRE support

• Storage Interface Features
   - Preboot eXecution Environment (PXE) support
   - iSCSI remote boot
   - Simple Network Management Protocol (SNMP) and Remote
     Network Monitoring (RMON) static counters

• Management Features
   - Asset Management support on Supermicro® platforms
   - Controller asset tags such as part number, revision, serial
     number, and MAC addresses
   - Controller thermal sensor
   - NC-SI for remote management

• Advanced Software Features
   - Teaming support
   - IEEE 802.3ad (link aggregation control protocol)
   - IEEE 802.1Q VLANs
   - IEEE 802.3 2005 flow control support
   - TCP segmentation/large send offload
   - Interrupt moderation

• OS Support
   - Windows® Server 2012 R2, 2012, 2008 R2 X86-64
   - Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64
   - Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64
   - FreeBSD 9 and 10 IA-32, X86-64, and IA-64
   - UEFI 2.1 and 2.3 X86-64 and I-64
   - VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64

• Cable Support
   - SFP+ direct attach twinaxial copper cables up to 7m
   - Fiber-optic cables (with required optional SFP+ transceivers)

• Power Consumption
   - Typical power consumption: 4W
   - Maximum power consumption: 7W

• Operating Conditions
   - Operating temperature: 0°C to 55°C (32°F to 131°F)
   - Storage temperature: -40°C to 70°C (-40°F to 158°F)
   - Storage humidity: 90% non-condensing relative humidity at 35°C

• Physical Dimensions
   - Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D)

Interfaz : SIOM
Marca : SUPERMICRO
Puertos : 4 x SFP+
Velocidad : 10 GBPS
