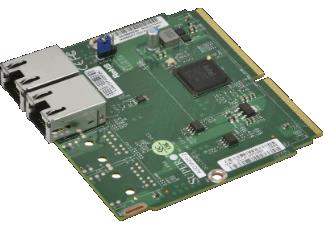

SIOM 2-port GbE with 1U bracket Intel i350-AM2

US$ 207.56
Agregar al Carrito
AOC-MGP-i2M-O • Super I/O Module (SIOM) Form Factor • Intel® i350 GbE controller • Dual RJ45 Ports • VMDq and SR-IOV for Virtualized Environments • Jumbo Frames support • Energy Efficient Ethernet (EEE) • iSCSI Remote Boot Support • PXE Boot Support • Support for most Network Operating Systems • Asset Management Features • NC-SI for Remote Management • RoHS compliant 6/6
Favoritos Consultar

• General
   - Intel® i350 GbE controller
   - Super I/O Module (SIOM) Form Factor
   - Dual RJ45 ports
   - Intel® I/O Acceleration Technology (Intel® I/OAT)

• Ethernet Features
   - IEEE 802.3 auto-negotiation for speed, duplex, and flow      control
   - IEEE 802.3x and 802.3z compliant flow control support
   - Automatic cross-over detection function (MDI/MDI-X)
   - 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY
     specifications Compliant
   - IEEE 1588 protocol and 802.1AS implementation

• Power Management and Efficiency
   - Energy Efficient Ethernet (EEE)
   - DMA Coalescing reduces platform power consumption
   - Active State Power Management (ASPM) support
   - LAN disable function
   - MAC Power Management controls
   - Low Power Link Up - Link Speed Control

• Virtualization Features
   - PC-SIG SR-IOV support
   - VM to VM Packet forwarding (Packet Loopback)
   - Flexible Port Partitioning
   - IEEE 802.1q VLAN support
   - IEEE 802.1q advanced packet filtering
   - Jumbo Frames support

• Performance Features
   - TCP/UDP, IPv4 and IPv6 checksum offloads to improve
     CPU usage
   - Low Latency Interrupts
   - Tx TCP segmentation offload (IPv4, IPv6) increases
     throughput and lowers processor usage
   - Receive Side Scaling (RSS) for Windows environment,
     Scalable I/O for Linux environments
   - Intelligent interrupt generation

• Management Features
   - Preboot eXecution Environment (PXE) support
   - iSCSI Remote Boot Support
   - Asset Management support on Supermicro® platforms
   - Controller asset tags such as part number, revision,
     serial number, and MAC addresses
   - NC-SI for remote management

• OS Support
   - Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition)
   - Windows 8.1, 8, 7 (x64 Edition)
   - RedHat Linux
   - SUSE Linux
   - FreeBSD
   - UEFI
   - VMWare

• Cables Support
   - RJ45 Category 5/5e up to 100m

• Power Consumption
   - Typical 3W, Maximum 3.7W

• Operating Conditions
   - Operating temperature: 0°C to 55°C (32°F to 131°F)
   - Storage temperature: -40°C to 70°C (-40°F to 158°F)
   - Storage humidity: 90% non-condensing relative humidity
     at 35°C

• Physical Dimensions (W x D)
   - Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in)

• Supported Platforms
   - Supermicro® motherboards with Super I/O Module slot
   - Supermicro® server systems with Super I/O Module slot

Interfaz : SIOM
Marca : SUPERMICRO
Puertos : 2 x RJ45
Velocidad : 1 GBPS
