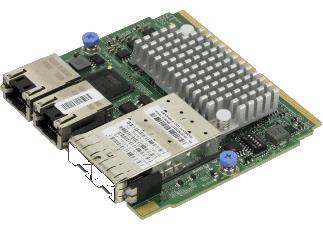

SIOM 2-port 25GbE SFP28 Broadcom BCM57414 and 2-port GbE RJ45 Intel i350 with 1U bracket

US$ 765.58
Agregar al Carrito
AOC-MH25G-B2S2GM-O • Super I/O Module (SIOM) Form Factor • Broadcom® BCM57414 25GbE controller, ? Dual SFP28 connectors • Intel® i350-AM2 GbE controller, Dual RJ45 Connectors • RDMA over Converged Ethernet (RoCE) (25GbE Controller only) • Network Virtualization: VXLAN and NVGRE ? (25GbE Controller only) • NIC Partitioning (NPAR) (25GbE Controller only) • Broadcom TruFlow (25GbE Controller only) • PCI-SIG SR-IOV • IEEE 1588 Time Sync • Jumbo Frames support • NC-SI for IPMI Remote Management (GbE Controller only) • Asset Management Features • RoHS compliant 6/6
Favoritos Consultar

• Networking Features
   - Jumbo frames
   - 802.3x flow control
   - Link Aggregation (802.3ad)
   - Virtual LANs- 802.1q VLAN tagging
   - Configurable Flow Acceleration
   - IEEE 1588 and Time Sync

• Stateless Offload Features:
   - TCP, UDP, IPv4, IPv6 checksum offload
   - Large Send Offload
   - Receive Segment Coalescing
   - TCP Segmentation Offload
   - Large Receive Offload
   - Receive Side Scaling (RSS)
   - Transmit Side Scaling (TSS)

• NIC Partitioning (NPAR):
   - 16 Physical Functions
   - QoS per partition
   - Partitioning control via sideband communication
   - Up to 64 MAC/VLAN filter per partition
   - Per partition statistics support
   - Stateless offloads configuration per partition
   - VEB/VEPA support

• Virtualization Features:
   - NetQueue, VMQueue, and Multiqueue
   - Support for 128 Virtual Functions
   - VXLAN, NVGRE and Geneve
   - Edge Virtual Bridging (EVB)

• RDMA over Converged Ethernet (RoCE):
   - RoCEv1 and RoCEv2
   - Data Center Bridging with RoCE

• Flow Processing:
   - Exact/Wildcard Match Flow Lookup
   - VLAN insertion/deletion
   - NAT/NAPT
   - Mirroring

• Data Center Bridging:
   - Priority-based flow control (PFC; IEEE 802.1Qbb)
   - Enhanced transmission selection (ETS; IEEE 802.1Qau)
   - Quantized congestion Notification (QCN; IEEE 802.1Qau)
   - Data Center Bridging Capability eXchange
      (DCBX; IEEE 802.1Qaz)
   - 8 traffic classes per port; fully DCB compliant per 802.1Qbb

• Power Savings:
   - ACPI compliant power management
   - PCI Express Active State Power Management (ASPM)
   - Ultra low-power mode
   - Pass-through Energy Efficient Ethernet (IEEE 802.3az-2010)

Interfaz : SIOM
Marca : SUPERMICRO
Puertos : 2 x SPF+
Velocidad : 25 GBPS
