• iSLC technology
• Built in iData Guard
• SATA 6Gb/s interface
• Built-in Pin 8 power supply
• Innovative Firmware Algorithm
• DRAM-less, 100% data integrity
• Anti-vibration mechanical design
• High IOPS to reduce boot up timing
• Best boot drive solution for server and embedded system
Main Specifications | |||||||||||||||

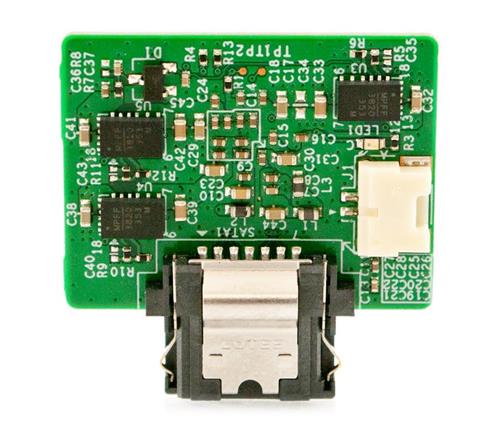

Device Type | Serial ATA Disk on Module (SATADOM) | ||||||||||||||
Dimensions (WxDxH) | 30 x 28.4 x 7.4 mm | ||||||||||||||
Interface Type | SATA III 6.0 Gb/s | ||||||||||||||
Storage Capacity | 8 GB | ||||||||||||||
Supported Flash Memory | iSLC technology | ||||||||||||||
Type | Vertical | ||||||||||||||
Performance | |||||||||||||||
Read | 240 (MB/sec, max.) | ||||||||||||||
Write | 160 (MB/sec, max.) | ||||||||||||||
Power | |||||||||||||||
Power Consumption | Max. Power Consumption: 0.8W (5V x 173mA ) | ||||||||||||||
Power Device | Built-in Pin 8 power supply | ||||||||||||||
Environmental Parameters | |||||||||||||||
Operating Temperature | Standard Grade (0°C ~ +70°C) | ||||||||||||||
Shock | 1500G @ 0.5ms | ||||||||||||||
Storage Temperature | -55°C ~ +95°C | ||||||||||||||
Vibration | 20G @7~2000Hz | ||||||||||||||
Miscellaneous | |||||||||||||||
Features | ATA Security, S.M.A.R.T. |
Puertos : | SATA |
Tipo de Almacenamiento : | DOM |
